I-Type Longitudinal Fin Tubes Manufacturer and Supplier in India
Fin Tubes is a reliable manufacturer and exporter of I-Type Longitudinal Fin Tubes in India that supplies efficient finned tubes designed to achieve optimal heat transfer rates and enhanced life span. Our Fin Tubes are manufactured by utilizing the latest welding technology and superior quality material, which makes them very robust and efficient. At Fin Tubes, we offer custom-made finned tubes in terms of size, shape, and material grade as per the needs of the heat exchanger, boiler, condenser, air cooler, petrochemical plant, power generating stations, and industrial process applications.
-
ISO 9001:2015Certified Company
-
High-qualityRaw Material
-
ExportWorldwide
-
Mill TestCertificate

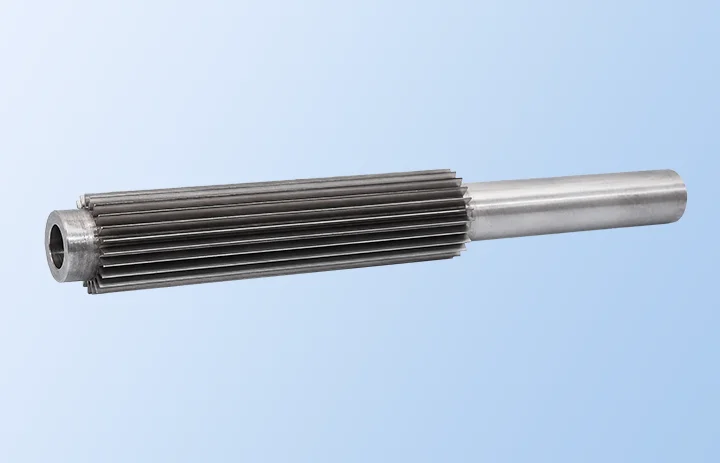

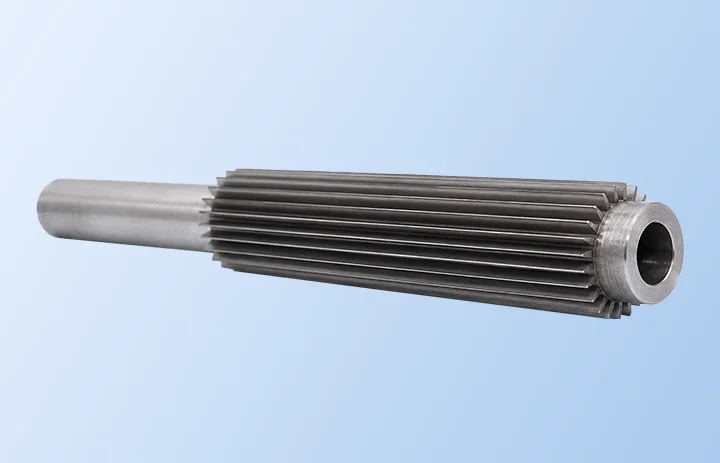

Overview of I-Type Longitudinal Fin Tubes
The I-Type Longitudinal Fin Tubes are high-efficiency heat transfer tubes fabricated with straight fins which are joined longitudinally to the outer surface of the base tube. The use of longitudinal fins greatly enhances the external heat transfer surface area to increase thermal efficiency in gas to liquid and air to liquid heat exchanger systems. Such finned tubes are usually fabricated by using the process of high frequency resistance welding to ensure that there is a good metallurgical joint between the fins and the tube for mechanical strength and efficient heat transfer performance. The I-Type Longitudinal Fin Tubes are normally made with outside tube diameters of 19mm to 273mm, fin height of 4mm to 38mm, and fin thickness of 0.5mm to 3mm. They are made from carbon steel, stainless steel, copper alloy, and nickel alloy materials.
Technical Data
Specifications of I-Type Longitudinal Fin Tubes
| Specification | Details |
|---|---|
| Product Type | I-Type Longitudinal Fin Tubes |
| Fin Configuration | Integral I-Shaped Longitudinal Fins |
| Manufacturing Process | Cold Rolling (Non-Cutting Metal Forming Process) |
| Base Tube OD | 19.05 mm to 63.5 mm (¾" to 2½") |
| Tube Wall Thickness | 1.65 mm to 6.35 mm |
| Tube Length | Up to 12,000 mm |
| Fin Height | 0.8 mm to 2.5 mm |
| Number of Fins | 20 to 40 Longitudinal Fins (depending on tube diameter) |
| Fin Material | Integral with the Base Tube (No Separate Fin Material) |
| Base Tube Materials | Carbon Steel, Stainless Steel (304/304L, 316/316L, 321), Alloy Steel, Copper Alloys, Nickel Alloys |
| Maximum Operating Temperature | Up to 450°C (material dependent) |
| Applicable Standards | ASTM A179, ASTM A192, ASTM A213, ASTM A249, ASTM A269, ASTM A312 (depending on base tube material) |
| Testing | Hydrostatic Test, Eddy Current Test, PMI, Dimensional Inspection, Visual Inspection |
I-Type Longitudinal Fin Tubes Price List
| Material Grade | Tube Size | Approx. Price |
|---|---|---|
| Carbon Steel | 19–38 mm OD | On Request |
| SS 304 | 19–38 mm OD | On Request |
| SS 316 | 19–38 mm OD | On Request |
| Alloy Steel | Custom Sizes | On Request |
| Nickel Alloy | Custom Sizes | On Request |
Prices vary based on coating process, coating material, tube dimensions, and order quantity. Contact us for a project-specific quote.
I-Type Longitudinal Fin Tubes Applications
Where I-Type Longitudinal Fin Tubes Are Used
- Vacuum Distillation Units
- Crude Oil Fractionation Columns
- LNG Processing Plants
- Solvent Recovery Systems
- Ammonia & Urea Plants
- Methanol Production Plants
- Desalination Plants

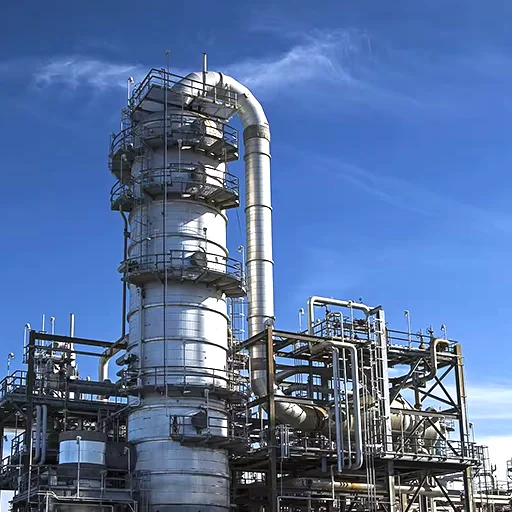

Vacuum Distillation Units

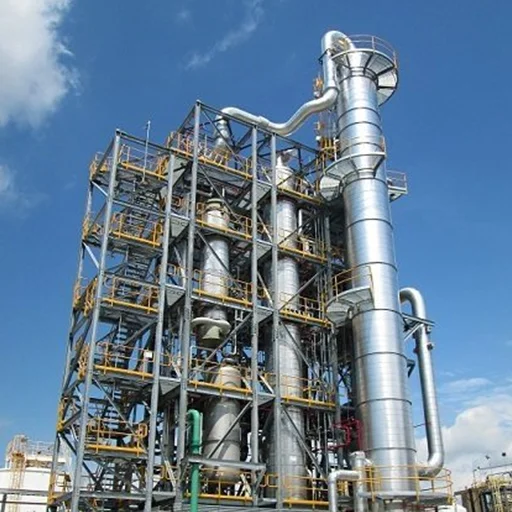

Solvent Recovery Systems

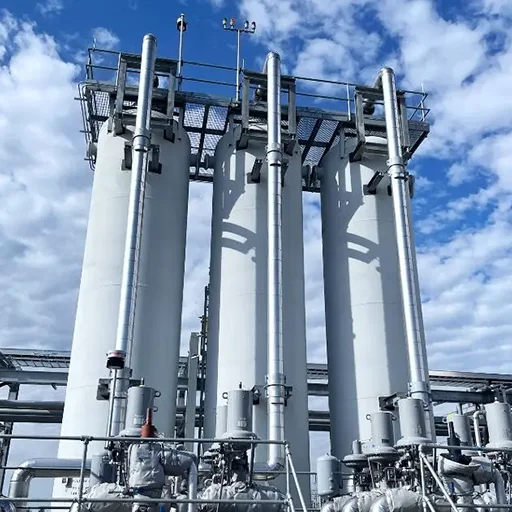

LNG Processing Plants

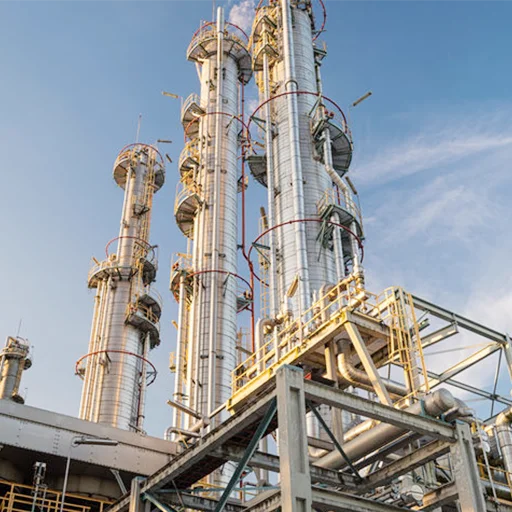

Crude Oil Fractionation Columns
Industries We Serve
Boilers
Heat Exchangers
Power Plants
Frequently Asked Questions
Have more questions? Send an enquiry and we will respond within one working day.
I-Type Longitudinal Fin Tubes are heat transfer tubes with straight fins welded along the length of the tube to increase the heat transfer surface area.
They improve heat transfer by increasing the external surface area, allowing more efficient heat exchange between the tube and the surrounding fluid.
They provide higher heat transfer efficiency, excellent mechanical strength, reduced energy consumption, and reliable performance in high-temperature applications.
They are manufactured by resistance welding or high-frequency welding straight metal fins onto the outer surface of the base tube.
They are commonly manufactured from carbon steel, stainless steel, alloy steel, copper alloys, and nickel alloys, depending on the application requirements.
Request a Quote for I-Type Longitudinal Fin Tubes
I-Type Longitudinal Fin Tubes manufacturer in India supplying precision-engineered finned tubes for enhanced heat transfer in heat exchangers, boilers, condensers, power plants, petrochemical, and process industries.
