T-Type Longitudinal Fin Tubes Manufacturer and Supplier in India
Being a trusted manufacturer and supplier of T-Type Longitudinal Fin Tubes in India, we provide highly engineered fin tubes that provide excellent heat transfer and longevity. Our fin tubes are produced using modern manufacturing processes and high-quality material that make them reliable for operation in tough industrial applications. We have a wide range of T-Type Longitudinal Fin Tubes in different sizes, materials, and specifications which are supplied to the reboiler, heat exchanger, power plant, petrochemical, and process industries.
-
ISO 9001:2015Certified Company
-
High-qualityRaw Material
-
ExportWorldwide
-
Mill TestCertificate
Overview of T-Type Longitudinal Fin Tubes

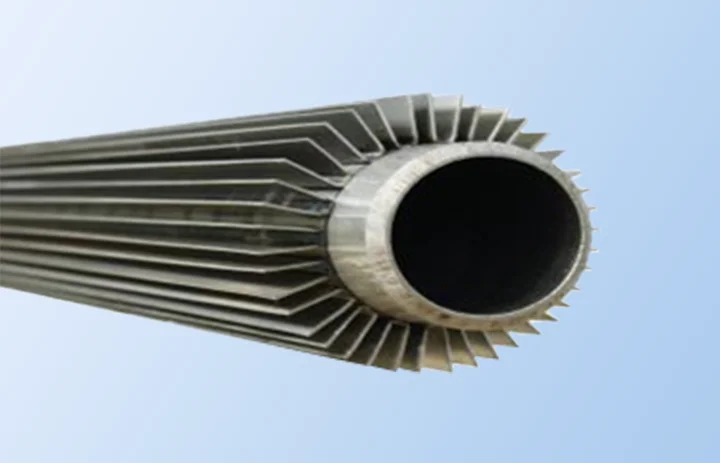

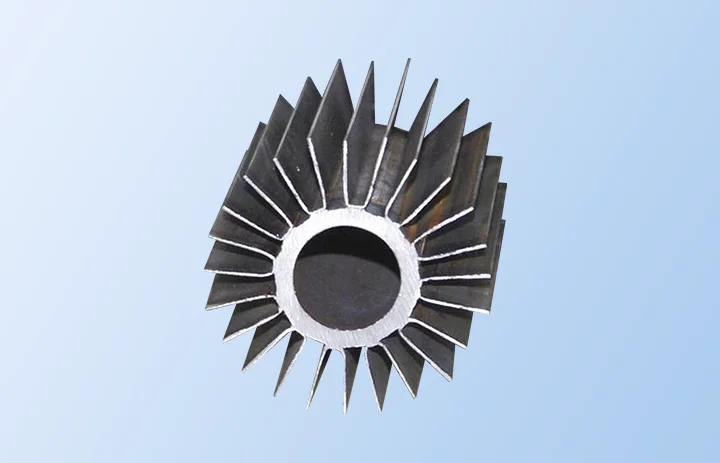

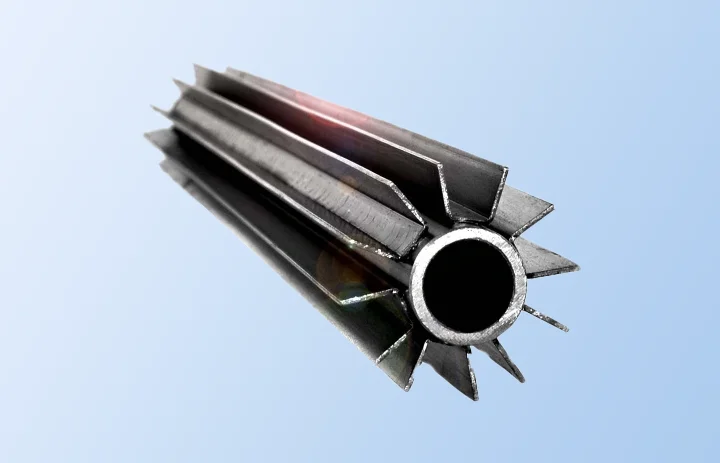

T-Type Longitudinal Fin Tubes are special heat transfer tubes for boosting thermal effectiveness in boiling and reboiling processes. Made by precise rolling technology, T-type longitudinal fin tubes have spiral flow channels created with longitudinal fins in the form of letter "T". It increases the surface area and allows effective evaporation of liquid films. Thus, these tubes increase the heat transfer coefficient, prevent fouling and scaling, and provide reliable operation even in tough conditions. In comparison with smooth tubes, the T-Type Longitudinal Fin Tubes allow much more efficient heat transfer, reducing the heat exchange surface area at the same time. They are actively used in reboilers, shell-and-tube heat exchangers, petrochemical plants, refineries, power stations, and other industries where heat transfer is required.
Technical Data
Specifications of T-Type Longitudinal Fin Tubes
| Specification | Details |
|---|---|
| Product Name | T-Type Longitudinal Fin Tubes |
| Fin Type | T-Type Longitudinal (T-Shaped) Fins |
| Manufacturing Process | Non-Cutting Rolling Process / Cold Rolling |
| Base Tube Materials | Carbon Steel, Stainless Steel, Alloy Steel, Copper Alloys, Nickel Alloys |
| Tube Outer Diameter | 19 mm to 76.2 mm (¾" to 3") or as per requirement |
| Tube Length | Up to 12 meters or customized |
| Fin Material | Integral with the Base Tube |
| Fin Height | 0.8 mm to 2.5 mm (Customizable) |
| Fin Pitch | As per application requirements |
| Wall Thickness | SCH 10 to SCH XXS or customized |
| Operating Temperature | Up to 450°C (Depending on material grade) |
| Surface Finish | Plain, Pickled, Passivated, or Customized |
| Standards | ASTM, ASME, DIN, EN, BS, JIS |
| Testing | Hydrostatic Test, Eddy Current Test, PMI, Dimensional Inspection, Visual Inspection |
| Applications | Reboilers, Heat Exchangers, Boilers, Condensers, Waste Heat Recovery Systems, Petrochemical Plants, Power Plants, Chemical Processing Industries |
| Customization | Available in custom dimensions, materials, fin geometry, and lengths as per customer drawings and specifications |
T-Type Longitudinal Fin Tubes Price List
| Product | Material | Indicative Price |
|---|---|---|
| T-Type Longitudinal Fin Tubes | Carbon Steel | On Request |
| T-Type Longitudinal Fin Tubes | Stainless Steel 304 | On Request |
| T-Type Longitudinal Fin Tubes | Stainless Steel 316 | On Request |
| T-Type Longitudinal Fin Tubes | Alloy Steel | On Request |
| T-Type Longitudinal Fin Tubes | Nickel Alloy | On Request |
Prices vary based on coating process, coating material, tube dimensions, and order quantity. Contact us for a project-specific quote.
T-Type Longitudinal Fin Tubes Applications
Where T-Type Longitudinal Fin Tubes Are Used
- Reboilers
- Shell-and-Tube Heat Exchangers
- Petrochemical Plants
- Oil & Gas Refineries

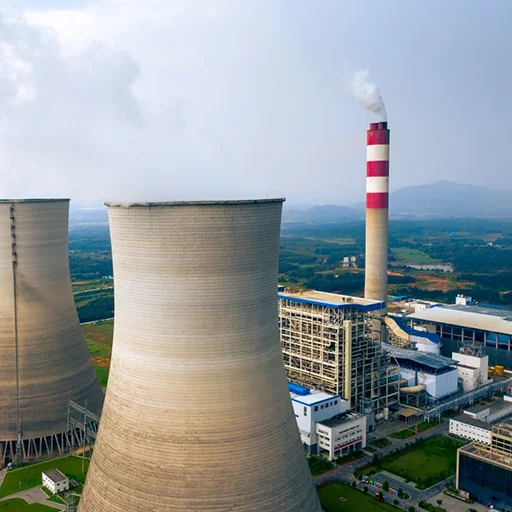

- Power Generation Plants
- Chemical Processing Plants
- Waste Heat Recovery Systems

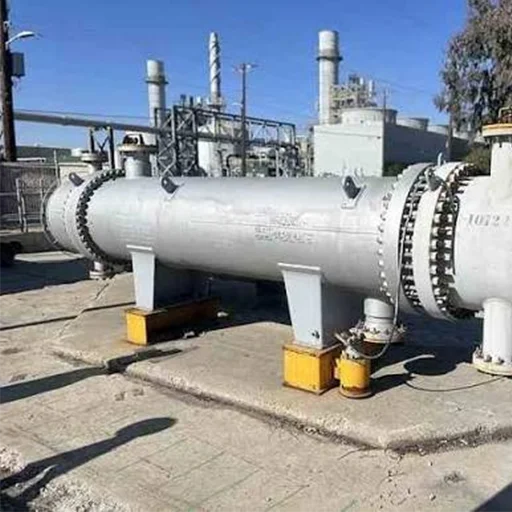

Shell-and-Tube Heat Exchangers

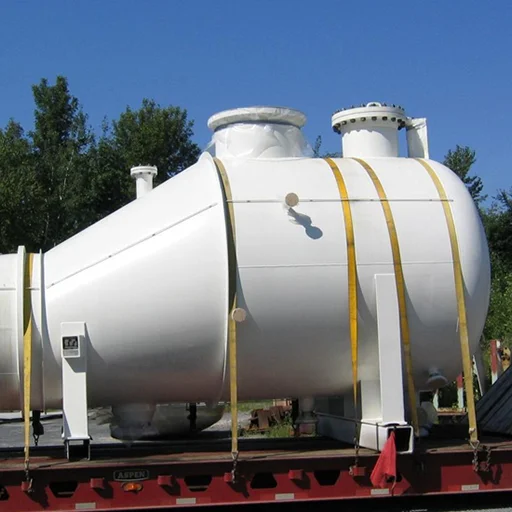

Reboilers
Petrochemical Plants

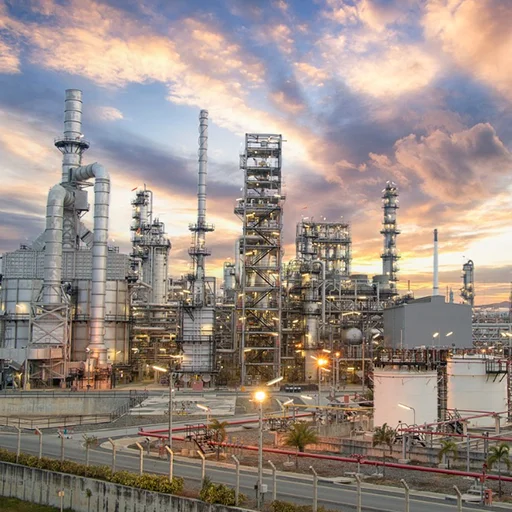

Oil & Gas Refineries
Industries We Serve
Boilers

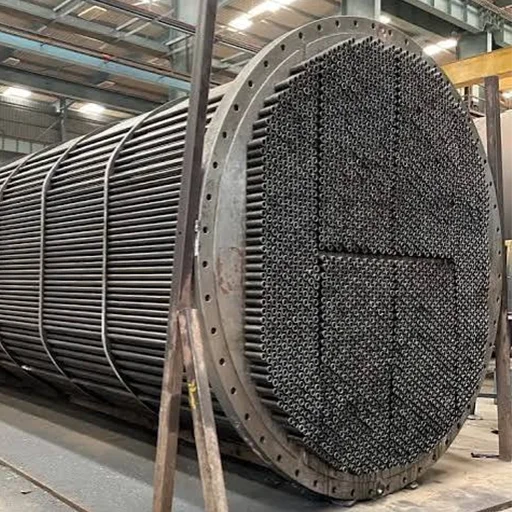

Heat Exchangers
Power Plants
Frequently Asked Questions
Have more questions? Send an enquiry and we will respond within one working day.
T-Type Longitudinal Fin Tubes are heat transfer tubes with T-shaped fins formed on the tube surface to increase the heat transfer area and improve thermal efficiency.
They work by increasing the surface area for heat exchange, allowing faster and more efficient heat transfer between the tube and the surrounding fluid.
They offer higher heat transfer efficiency, reduced heat exchanger size, lower fouling, improved energy savings, and reliable performance in high-temperature applications.
They are commonly manufactured from carbon steel, stainless steel, alloy steel, copper alloys, and nickel alloys, depending on the application.
They are widely used in reboilers, heat exchangers, boilers, petrochemical plants, power plants, chemical processing industries, and waste heat recovery systems.
Request a Quote for T-Type Longitudinal Fin Tubes
T-Type Longitudinal Fin Tubes manufacturer in India supplying precision-welded finned tubes for boilers, economizers, heat exchangers, and petrochemical plants. Get a quote today.
