V-Type Longitudinal Fin Tubes Manufacturer and Supplier in India
We at Fin Tubes are renowned providers of quality V-Type Longitudinal Fin Tubes in India, manufacturing finned tubes that are known to provide excellent heat transfer properties along with long service life and robust construction. Our V-Type fin tubes are fabricated using the latest technology for welding and using best-in-class materials to guarantee excellent thermal efficiency and performance of the tube even in tough industrial environments. At Fin Tubes, we offer custom dimensions, designs, and materials for use in various industrial applications such as heat exchangers, boilers, economizers, condensers, petrochemical facilities, power plants, etc.
-
ISO 9001:2015Certified Company
-
High-qualityRaw Material
-
ExportWorldwide
-
Mill TestCertificate

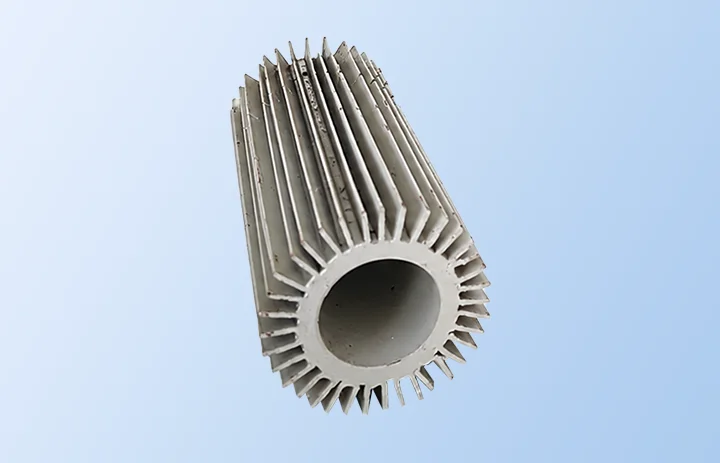

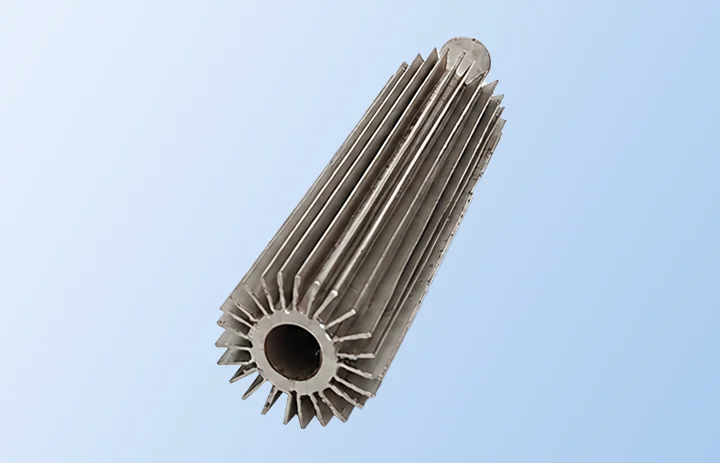

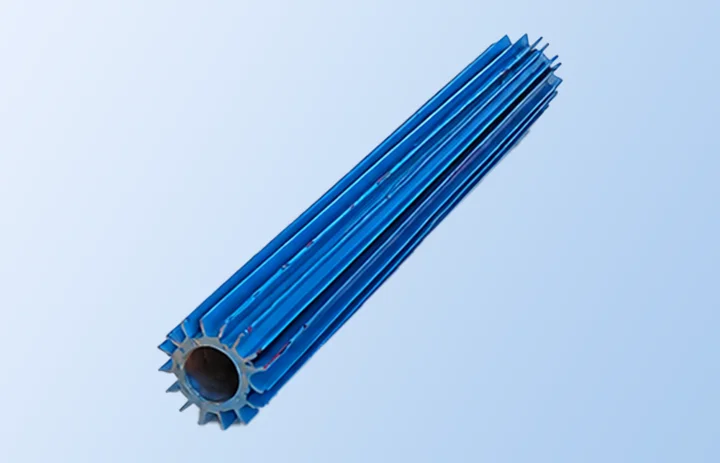

Overview of V-Type Longitudinal Fin Tubes
The V-Type Longitudinal Fin Tubes are advanced heat transfer tubes that incorporate the use of V-channel fins resistance-welded to the outer wall of the base tube. The special V-channel construction increases the heat transfer area externally as well as creates turbulence in fluids, thereby increasing the efficiency of thermal transfer as compared to regular fins. These tubes are made by shaping metal strips in V-channels and then bonding them to the tube through axial resistance welding. Made from carbon steel, stainless steel, copper, aluminum, and alloys, the V-Type Longitudinal Fin Tubes have high corrosion resistance and good fluid drainage capabilities, along with superior strength under high pressure and temperature environments.
Technical Data
Specifications of V-Type Longitudinal Fin Tubes
| Parameter | Standard Specification |
|---|---|
| Product Type | V-Type Longitudinal Fin Tube (Resistance Welded) |
| Base Tube Outside Diameter | 19 mm – 76 mm (3/4" – 3") |
| Base Tube Wall Thickness | 2.0 mm – 6.0 mm |
| Tube Length | Up to 15,000 mm (Custom lengths available) |
| Fin Type | V-Type Longitudinal (Axial) Welded Fins |
| Fin Height | 6 mm – 32 mm |
| Fin Thickness | 0.8 mm – 1.5 mm |
| Number of Fins | 4, 8, 12, 16, 24, 32, 40, 48 (custom configurations available) |
| Fin Attachment Method | High-Frequency Resistance Welding / Resistance Welding |
| Base Tube Materials | Carbon Steel, Stainless Steel, Alloy Steel, Duplex Stainless Steel |
| Fin Materials | Carbon Steel, Stainless Steel, Alloy Steel |
| Tube Standards | ASTM A179, ASTM A192, ASTM A210, ASTM A213, ASTM A106, ASTM A312 (depending on application) |
| Operating Temperature | Up to 650°C (material dependent) |
| Design Pressure | As per tube material and project requirements |
| Manufacturing Standard | As per customer drawings, ASME, ASTM, EN, or equivalent standards |
| Testing | Visual Inspection, Dimensional Inspection, Weld Integrity Test, Hydrostatic Test (if required), PMI (optional) |
| Surface Finish | Mill Finish, Pickled & Passivated, Shot Blasted, or Protective Coating (on request) |
Price Chart of V-Type Longitudinal Fin Tubes
| Material | Tube Size (OD) | Approx. Price (INR) |
|---|---|---|
| Carbon Steel | 19–25 mm | Request Quote |
| Carbon Steel | 32–38 mm | Request Quote |
| Carbon Steel | 42–51 mm | Request Quote |
| Stainless Steel 304 | 19–25 mm | Request Quote |
| Stainless Steel 316 | 19–25 mm | Request Quote |
| Alloy Steel | 25–51 mm | Request Quote |
| Duplex Stainless Steel | 25–51 mm | Request Quote |
| Nickel Alloy (Inconel/Monel) | 25–51 mm | Request Quote |
Prices vary based on coating process, coating material, tube dimensions, and order quantity. Contact us for a project-specific quote.
V-Type Longitudinal Fin Tubes Applications
Where V-Type Longitudinal Fin Tubes Are Used
- Heat Exchanger Manufacturing Industry
- Oil & Gas Industry
- Petrochemical Industry
- Chemical Processing Industry
- Power Generation Industry
- Fertilizer Industry
Petrochemical Industry
Oil & Gas Industry

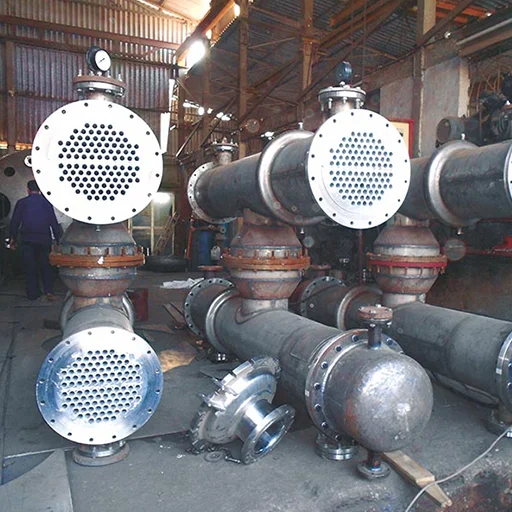

Heat Exchanger Manufacturing Industry
Chemical Processing Industry
Industries We Serve
Boilers
Heat Exchangers
Power Plants
Frequently Asked Questions
Have more questions? Send an enquiry and we will respond within one working day.
They are heat exchanger tubes with V-shaped fins welded along the tube length to increase heat transfer area.
They work by increasing surface area, allowing more heat to transfer between fluids and gases efficiently.
To improve heat transfer rate and enhance thermal efficiency by increasing contact area.
Yes, they are designed to withstand high pressure and high-temperature industrial conditions depending on material grade.
Longitudinal fin tubes have fins running along the tube length, while helical fin tubes have spiral-wrapped fins.
Yes, they are significantly more efficient because they provide much higher heat transfer surface area.
Request a Quote for V-Type Longitudinal Fin Tubes
V-Type Longitudinal Fin Tubes manufacturer in India supplying precision-engineered finned tubes for enhanced heat transfer in heat exchangers, boilers, economizers, condensers, power plants, and petrochemical industries.
